extension reference

bundled modules

Ritz ships these modules out of the box under resources/extensions/default/ and resources/extensions/built-in/. Each contributes a UI section you configure per-scope, which compiles into env vars, a command wrapper, launch args, or a native runtime backend.

anatomy of a module

Everything below is the raw JSON. If you'd rather not hand-write it, ritz ships a built-in visual editor that builds the same manifest for you — see IDE mode.

A module is either a single file or a folder with exactly one manifest plus any scripts it references:

extensions/
├─ my-tweaks.json              # single-file module
└─ my-scripts/                 # folder module
   ├─ my-scripts.json          # exactly one manifest
   ├─ pre.sh                   # scripts referenced by the manifest
   └─ post.sh

Each module assembles into up to four launch blocks plus optional lifecycle hooks. The final command is:

A skeleton with every top-level key:

{
  "Extension": { "Name": "...", "Author": "...", "Version": "1.0", "Description": "..." },

  "AppIds": ["730"],            // optional: restrict to these Steam AppIds (omit = all games)
  "Backend": "custom-env",      // optional: route to a built-in runtime handler
  "RequiresDesktop": "Hyprland",// optional: only load on this $XDG_CURRENT_DESKTOP

  "UI": { "Section": [ /* fields */ ] },

  "ENV_VARS":        [ /* whole-chain environment */ ],
  "GAME_ENV_VARS":   [ /* game-only environment */ ],
  "WRAPPERS":        [ /* gamescope-style wrappers */ ],
  "GAME_LAUNCH_ARGS":[ /* args appended after %command% */ ],

  "Hooks": { /* lifecycle scripts */ },
  "ScriptBuilders": [ /* advanced: scripts that emit block content */ ]
}

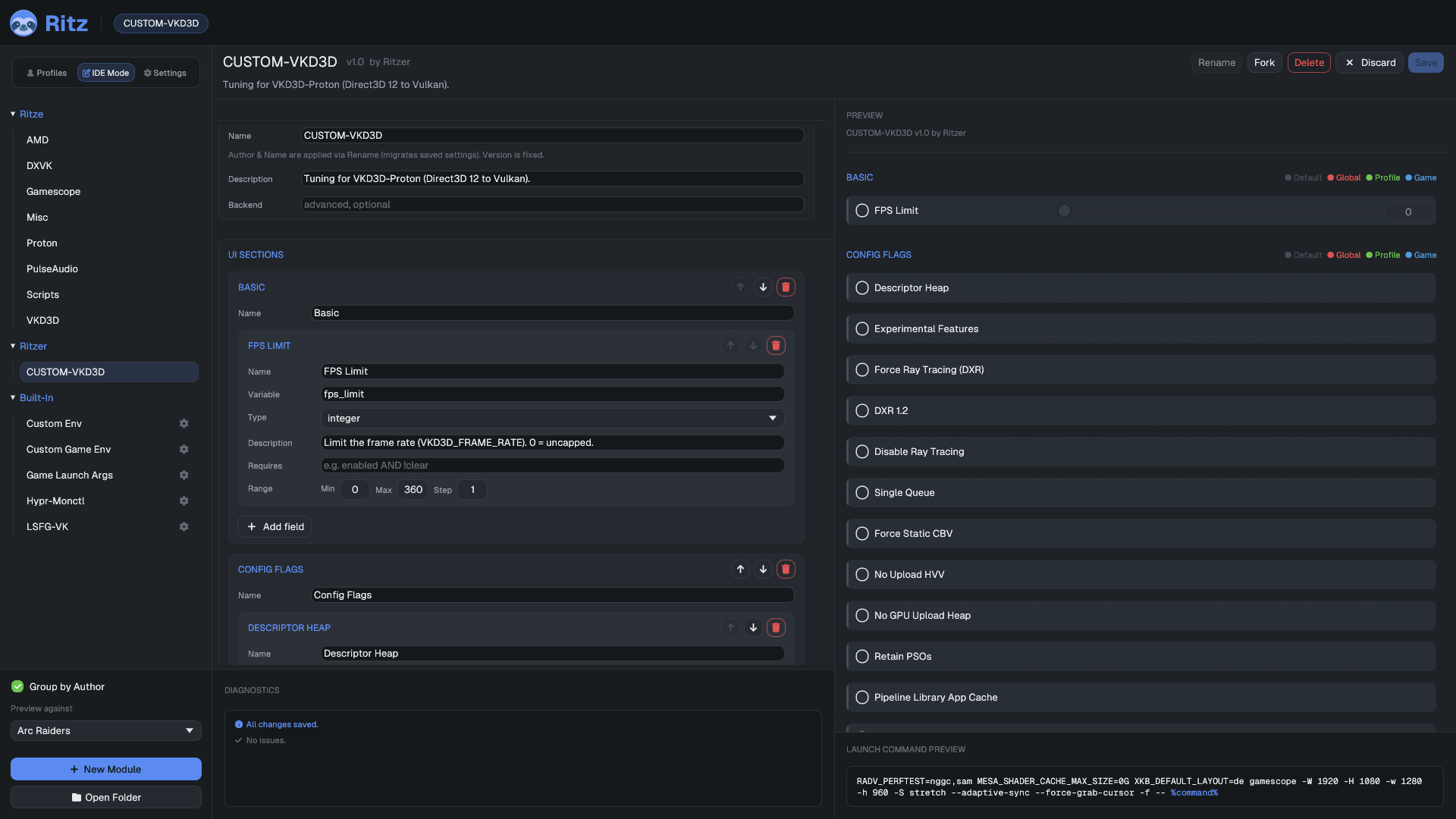

editing modules visually — IDE mode

Don't want to hand-write JSON? The settings GUI has an IDE Mode nav destination: pick a module from the list on the left, edit its metadata and UI sections/fields in the middle manifest editor, and watch a live preview on the right — the module rendered exactly as it would look in normal use, driving the same launch-command preview, checked against any game you choose. Fork a bundled module to start from a working example, or New Module to build one from scratch — either way you're still just editing the same JSON schema documented below, without leaving the GUI.

metadata

"Extension": {
  "Name": "AMD",
  "Author": "Ritze",
  "Version": "1.0",
  "Description": "RADV driver tuning."
}

A module's identity is <Author>::<Name>::<Version> — this is also how stored values are keyed, so renaming a module orphans its old saved values (clear them with Config Cleanup).

UI & fields

UI is an ordered map of section name → list of fields. Sections render in declared order. Each field binds a Variable the builders reference.

"UI": {
  "RADV Perftest": [
    { "Name": "Enable RADV Perftest", "Description": "Enable RADV_PERFTEST tuning.",
      "Type": "toggle", "Variable": "enabled", "Default": false },

    { "Name": "ACO Compiler", "Description": "Enable the ACO shader compiler.",
      "Type": "toggle", "Variable": "aco", "Requires": "enabled" }
  ]
}

field types

lists & for-each (multi_string)

A multi_string field stores a list of strings, edited as a growing slot list (like the Custom Env rows). It resolves to its non-empty entries joined by newlines, and is truthy when it has at least one entry. Because of that newline-join, a list naturally behaves like a for-each wherever it's consumed:

• Launch args & wrappers shell-split the interpolated value, so {my_list} expands to one token per entry.
• Hook scripts receive the newline-joined list in RITZ_VAR_<name> and loop over the lines (the bundled Scripts module runs one command per entry).
• Env vars are the exception: a set/append gets the whole list as one newline-joined value (no per-entry expansion).

{ "Name": "Commands", "Type": "multi_string", "Variable": "pre_command" }
// stored as:  "pre_command": ["echo hi", "mangohud &"]
// RITZ_VAR_pre_command = "echo hi\nmangohud &"  → the hook runs each line

common field keys

a selection with labels

{ "Name": "Backend", "Type": "selection", "Variable": "backend", "Requires": "enabled",
  "DisplayOptions": ["Auto", "DRM", "SDL", "Wayland"],
  "Options":        ["auto", "drm", "sdl", "wayland"] }

The user sees the DisplayOptions label; the matching Options value is stored and interpolated.

variables & scoping

Variable names are auto-scoped per module — short names like enabled or backend never collide with another module's. A field is "truthy" when set: a toggle that's on, or any non-empty string/selection/number.

To share a value with other modules' builders, name it global:<name>. Such a variable is published to the build-phase scope and can be referenced by other modules (only allowed in builders, not in UI Requires).

the Requires grammar

Requires gates both UI visibility and whether a builder entry fires. It's a boolean expression of variable names:

expr  := and ( "OR"  and )*
and   := atom ( "AND" atom )*
atom  := "!" atom | IDENT          // NOT also written "!"

Precedence is ! > AND > OR; there are no parentheses. An empty/omitted expression is always true.

"Requires": "enabled"
"Requires": "enabled AND fsr_enabled"
"Requires": "gamescope AND !native_res"
"Requires": "descriptor_heap OR raw_config"   // fires if either is set

environment variables

ENV_VARS apply to the whole launch chain (the child process environment); GAME_ENV_VARS apply only to the game (via an env shim after the wrapper). Both use the same shape: a named variable whose value is assembled by an ordered Builder.

"ENV_VARS": [
  {
    "Name": "RADV_PERFTEST",
    "Requires": "enabled",                 // skip the whole var unless this holds
    "Builder": [
      { "Requires": "clear", "Type": "set",    "Value": "" },
      { "Requires": "aco",   "Type": "append", "Separator": ",", "Value": "aco" },
      { "Requires": "nggc",  "Type": "append", "Separator": ",", "Value": "nggc" }
    ]
  }
]

Builder entries evaluate in declaration order, each gated by its own Requires. {var} in any Value (or even in Name) interpolates that variable's current value. So the snippet above yields RADV_PERFTEST=aco,nggc when aco and nggc are on.

wrappers

Wrappers are programs prepended left of %command% — the gamescope … -- %command% idiom. CommandSyntax is a template with an {OPTIONS} placeholder filled from the Builder (each entry's Value, space-joined, gated by Requires).

"WRAPPERS": [
  {
    "CommandSyntax": "gamescope {OPTIONS} --",
    "Requires": "enabled",
    "Priority": 100,                       // lower = further left in the chain
    "Builder": [
      { "Requires": "output_width",  "Value": "-W {output_width}" },
      { "Requires": "fsr_enabled",   "Value": "--filter fsr" },
      { "Requires": "fullscreen",    "Value": "-f" }
    ]
  }
]

Multiple wrappers (across modules) are ordered by Priority ascending, then by module order. The rendered template is shell-split into argv.

game launch arguments

GAME_LAUNCH_ARGS are appended after the game command. Each entry is a gated value; the value is shell-split, so one entry may contain multiple tokens.

"GAME_LAUNCH_ARGS": [
  { "Requires": "condebug", "Value": "-condebug" },
  { "Requires": "extra",    "Value": "{extra}" }   // e.g. extra = "-nojoy +fps_max 0"
]

hooks & scripts

Lifecycle hooks run scripts (paths relative to the module folder) at four points. A hook is either a bare path (runs blocking) or an object that can opt into background execution.

"Hooks": {
  "PreLaunch":   "pre.sh",                              // before launch (blocking)
  "PostSpawn":   { "Script": "notify.sh", "Background": true },
  "OnGameReady": "ready.sh",                            // when the real game process appears
  "PostExit":    "cleanup.sh"                           // after the game exits
}

ScriptBuilders are an advanced escape hatch: a script emits content for a launch block (ENV_VARS, WRAPPERS, GAME_ENV_VARS, or GAME_LAUNCH_ARGS) at build time.

"ScriptBuilders": [ { "Block": "ENV_VARS", "Script": "build-env.sh" } ]

backends

A module with a Backend routes its values to a built-in handler — either a special GUI (dynamic slot lists) or a runtime process handler — rather than (or in addition to) the plain command builder. Bundled backends:

full example module

A complete single-file module exercising fields, Requires, env builders, a wrapper, and launch args:

{
  "Extension": {
    "Name": "Example", "Author": "You", "Version": "1.0",
    "Description": "Demonstrates every block."
  },
  "UI": {
    "Basic": [
      { "Name": "Enable", "Type": "toggle", "Variable": "enabled", "Default": false },
      { "Name": "FPS Limit", "Type": "integer", "Variable": "fps",
        "Options": { "min": 0, "max": 360, "step": 1 }, "Requires": "enabled" },
      { "Name": "Renderer", "Type": "selection", "Variable": "renderer", "Requires": "enabled",
        "DisplayOptions": ["Vulkan", "OpenGL"], "Options": ["vk", "gl"] }
    ],
    "Advanced": [
      { "Name": "Extra args", "Type": "string", "Variable": "extra", "Requires": "enabled" }
    ]
  },
  "ENV_VARS": [
    { "Name": "MY_FPS_CAP", "Requires": "fps",
      "Builder": [ { "Requires": "fps", "Type": "set", "Value": "{fps}" } ] }
  ],
  "GAME_ENV_VARS": [
    { "Name": "MY_RENDERER", "Requires": "renderer",
      "Builder": [ { "Requires": "renderer", "Type": "set", "Value": "{renderer}" } ] }
  ],
  "WRAPPERS": [
    { "CommandSyntax": "mangohud {OPTIONS}", "Requires": "enabled", "Priority": 50,
      "Builder": [ { "Requires": "fps", "Value": "--fps-limit {fps}" } ] }
  ],
  "GAME_LAUNCH_ARGS": [
    { "Requires": "extra", "Value": "{extra}" }
  ]
}

Preview any config with ritz --print %command% to see exactly how it assembles (outside real Steam, set an id first: RITZ_APPID=<id> ritz --print %command%).

config files

You normally never edit these by hand — the GUI writes them — but here's the shape. Values are keyed by Author → Name → variable, and only explicitly-set values are stored.

global.json — applies to every game

{
  "Name": "",
  "Modules": {
    "Ritze": {
      "Misc": { "kbd_layout": "de" }
    }
  }
}

profiles/Competitive.json

{
  "Name": "Competitive",
  "Pin": 1,
  "Modules": {
    "Ritze": {
      "Gamescope": { "enabled": true, "fullscreen": true },
      "AMD":       { "enabled": true, "aco": true }
    }
  }
}

games/730.json — keyed by SteamAppId

{
  "Game": { "Name": "Counter-Strike 2", "AppId": "730" },
  "Config": {
    "General": { },
    "Modules": {
      "Preset": "Competitive",          // the assigned profile
      "Ritze": {
        "DXVK": { "fps_limit": 240 }    // a game-scope override
      }
    }
  }
}
